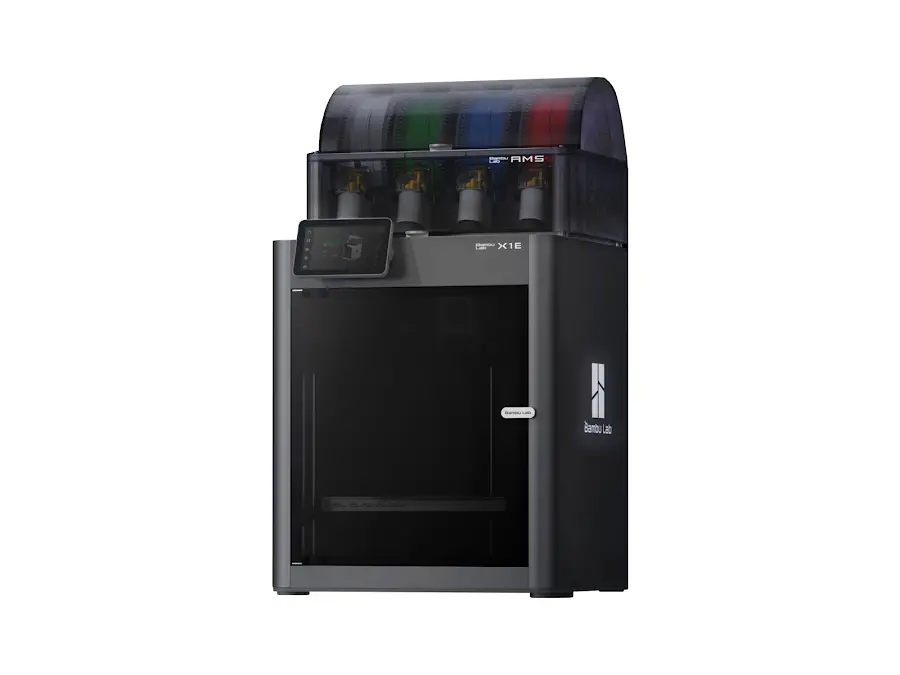

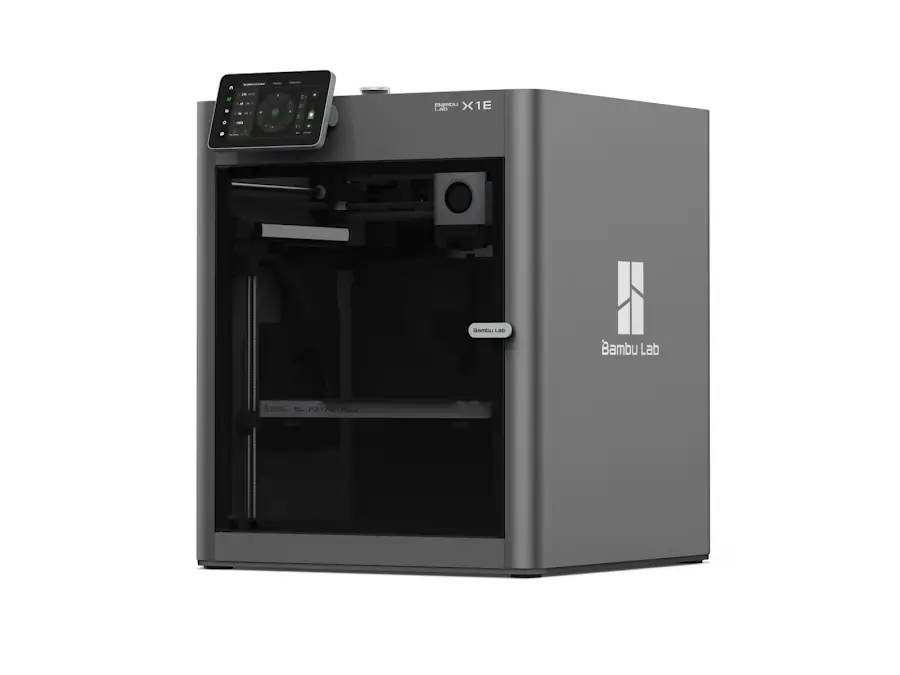

Bambu Lab X1E COMBO 3D Printer
121.095,00 TL
*12.573,70 TL den başlayan taksitlerle!
Kategori
Stok Kodu
3D-000042
Fiyat
3.105,00 USD + KDV
Bu bir ön sipariş ürünüdür. Tahmini teslimat tarihi 25 Mart - 31 Mart.
Enhanced And More Connection Options
Stable Ethernet Connection, WPA2-Enterprise Authentication Wi-Fi Connection
The X1E offers the option to connect to your devices through its newly added Ethernet port, ensuring robust network communication in complex environments. Ethernet connectivity can also be used in crowded wireless signal environments. Additionally, the X1E provides WPA2-Enterprise Wi-Fi Authentication (EAP-PEAP/EAP-TLS/TAP-TTLS) and individual physical kill switches for both Wi-Fi and Ethernet, meeting stringent network security requirements.
Off-Cloud Operation
Fully Functional With LAN Only Mode
The X1E can operate independently without a connection to Bambu Cloud Service, fully functional within your local network. Customers can remotely control the X1E through LAN communication without requiring an Internet connection. For additional customization details, please contact your regional reseller.
Heavy Duty Air Filtration
Effectively Filter Particulates And VOCs Generated by 3D Printing
We combined a G3 pre-filter, an H12 HEPA filter, and a high-quality coconut shell activated carbon filter to provide optimal air filtration. Enhanced filtration can effectively reduce excessive odors and particulates when printing in less ventilated environments.
Active Heating And Controlled Chamber Temp
Reduce Warping, Improve Layer Bonding
The X1E can actively heat and regulate the chamber temperature. Accurately controlled chamber temperature (up to 60°C or 140°F) improves print quality, especially for filaments prone to warping such as ABS and PC.
320 °C (608 °F) Nozzle Temp
More Heat For Higher Temperature Materials
Higher nozzle temperature make possible to print higher performance materials such as PPA-CF/GF, PPS and PPS-CF. These new materials have better dimensional stability, heat resistance and mechanical performance.
Robust High Speed CoreXY
Super Fast And Rigid Structure For Continuous High Speed Printing
The superior carbon-fiber rods in the CoreXY motion structure enable the X1E to achieve a toolhead acceleration of 20,000 mm/s² by reducing the weight of moving parts. This faster acceleration allows the X1E to maintain its maximum travel speed of 500 mm/s for longer periods, significantly reducing overall print time.
Vibration And Extrusion Compensation
Stable & Quality Prints Even At Higher Speeds
X1E can actively compensate for XY-axis vibrations and extrusion issues to ensure exceptionally smooth print quality. All measurements are fully automatic, eliminating the need for manual adjustments.
AI Failure Detection
Reduce Filament Wastage And Machine Downtime
The X1E's AI algorithm can detect first-layer imperfections and spaghetti failures with the assistance of Lidar and computer vision. It then automatically pauses the print to prevent catastrophic failures.
Intelligent Filament Management
Supports Auto Filament Reload and Enables Multi-Material Printing with Support Material for Improved Surface Quality
X1E can parallel connect 4 Bambu AMS systems to print with up to 16 spools of filaments, good for printing dedicated support materials for seamless surface and printing multi-color. The AMS system also supports automatic filaments reload, to used up all filament on one spool before switching to the next.
WHAT ARE THE DIFFERENCES BETWEEN THE BAMBU LAB X1 SERIES 3D PRINTERS?
Model | Bambu Lab X1E | Bambu Lab X1 Carbon |
Ideal Application | Enterprise & Engineering Applications | Personal Use, Production Startup |
Max Hot End Temperature | 320°C (608°F) | 300°C (572°F) |
Included Flexible Build Plate | Bambu Smooth PEI Plate | Bambu Cool/Engineering Plate |
Active Chamber Heating | Yes | No |
Max Chamber Temperature | 60°C | N/A |
Activated Carbon Filter Type | Coconut Shell Granulated | Coal Based Pellets |
Air Pre-Filtered Grade | G13 | N/A |
HEPA Filter Grade | H12 | N/A |
Particulate Matter Filtration | Yes | No |
VOC Filtration | Optimal | Capable |
Ethernet Connectivity | Yes | No |
WPA2-Enterprise Capability | Yes | No |
Network Kill Switch | Yes (Ethernet & Wi-Fi) | No |
Removable Network Module | Yes | No |
802.1X Network Access Control | Yes | No |
SUPPORTED MATERIALS | ||
PPA-CF/GF, PPS, PPS-CF/GF | Ideal | No |
ABS, ASA, PC, PA, PET | Superior | Ideal |
Carbon/Glass Fiber Reinforced Materials (PLA, PETG, PA, PET, PC, ABS, ASA) |
Superior | Ideal |
PLA, PETG, TPU, PVA, BVOH | Optimal | Optimal |
WHAT ARE THE TECHNICAL SPECIFICATIONS OF THE BAMBU LAB X1E 3D PRINTER?
GENERAL | |
---|---|
Technology | Fused Deposition Modeling (FDM) |
Motion System | CoreXY |
Assembly | Fully-Assembled |
Made in | China |
MACHINE DIMENSIONS | |
Outer Dimensions (w/o AMS)* (L × W × H) |
389mm × 389mm × 457mm (15.3" × 15.3" × 18") |
Net Weight (w/o AMS)** | 16kg (35.3lbs) |
Gross Weight (w/ AMS) | ~24.3kg (53.6lbs) |
PRINTING PARAMETERS | |
Build Volume (L × W × H) |
256mm × 256mm × 256mm (10" x 10" x 10") |
Filament Diameter | 1.75mm |
Extrusion | Single |
Nozzle Diameter | 0.4mm (included) 0.6mm and 0.8mm sizes (optional purchases) |
Nozzle Material | Hardened Steel (included) Stainless Steel option available |
Max Hotend Temperature | 320°C (608°F) |
Max Build Plate Temperature | 120°C (at 110V) |
Max Active Heated Chamber Temperature | 60°C (140°F) |
Max Speed of Toolhead | 500mm/s |
Max Acceleration of Tool Head | 20,000 mm/s² |
Flow Rate | 32mm³/s |
ADDITIONAL FEATURES | |
MCU | Dual-Core 32-bit |
Enclosed | Yes |
Chassis Material | Steel |
Shell | Aluminum & Glass |
Build Surface | Bambu Smooth PEI Plate (included) Bambu High-Temperature Plate (optional purchase) Bambu Textured PEI Plate (optional purchase) Bambu Cool Plate (optional purchase) |
Magnetic Bed | ✓ |
All-Metal Hotend | ✓ |
Removable Hotend Assembly | ✓ |
Multi-Material 3D Printing | ✓ |
Multi-Color 3D Printing | ✓ |
Dual Automatic Bed Leveling | ✓ |
Filament Sensor | ✓ |
Filament Odometer | ✓ |
RFID Sensor | ✓ |
Active Heated Chamber | ✓ |
Active Vibration Compensation | ✓ |
Flow Control | ✓ |
Power Loss Recovery | ✓ |
AI First Layer Inspection | ✓ |
AI Filament Spaghetti Detection | ✓ |
Belt Tension Detection | ✓ |
Closed Loop Fan | ✓ |
Door Sensor | ✓ |
Chamber Temperature Sensor | ✓ |
Chamber Camera | ✓ |
Camera Resolution | 1920x1080p |
Air Filters | Activated Carbon (Coconut Shell Granulated) & G3 Pre-filter grade & HEPA H12 filter grade |
ELECTRONICS | |
Display | 5" Color LCD Touchscreen |
Display Resolution | 720p |
Storage | 4GB EMMC and Micro SD Card Reader |
Control Interface | Touch Screen, Mobile App, PC Application |
Motion Controller | Dual-Core Cortex M4 |
Application Processor | Quad ARM A7 1.2 GHz |
Neural-Network Processing Unit | 2 Tops |
NETWORK CONTROL | |
Connectivity | Wi-Fi, Ethernet |
Network Kill Switch | Wi-Fi & Ethernet |
Wi-Fi Frequency Range | 2400 MHz - 2483.5 MHz |
Wi-Fi WPA2-Enterprise | EAP-PEAP EAP-TLS TAP-TTLS |
Wi-Fi Transmitter Power (EIRP) | ≤ 21.5 dBm (FCC) ≤ 20 dBm (CE/SRRC) |
Wi-Fi Protocol | IEEE 802.11 b/g/n |
Ethernet Socket | RJ45 |
Ethernet Speed | 100 Mbps / Full Duplex |
Removable Network Module | Yes |
802.1X Network Access Control | Yes |
BAMBU MICRO LIDAR | |
Laser (Class 1) | 850 nm < 0.778 mW |
Display Resolution | 720p |
Storage | 4GB EMMC and Micro SD Card Reader |
Control Interface | Touch Screen, Mobile App, PC Application |
Motion Controller | Dual-Core Cortex M4 |
Application Processor | Quad ARM A7 1.2 GHz |
Neural-Network Processing Unit | 2 Tops |
SOFTWARE | |
Recommended Slicer | - Bambu Studio - Third-party slicers* like Cura, SuperSlicer, and PrusaSlicer *Note some advanced features may not be supported with third-party slicers |
Compatible OS | Windows, Mac OSX |
Supported File Format(s) | 3MF, STL |
COMPATIBLE MATERIALS | |
Third-Party Filament | Yes*** |
Superior Compatible Materials | ABS, PET, PC, Nylon / PA, ASA, Glass Fiber and Carbon Fiber Composites [NylonX, NylonG, etc.] |
Ideal Compatible Materials | PPA, PPS, PPA-CF/GF, PPS, PPS-CF/GF |
Optimal Compatible Materials | PLA, PETG, Flexibles [TPU, TPE] Support (PVA, Breakaway) |
POWER | |
Input Voltage | 100-240 VAC, 50/60 Hz |
Max Power | 750W (at 110V) |
* The Bambu Lab X1E 3D Printer has an additional 224mm (8.8") in height with the Bambu Lab AMS unit attached.
** The Bambu Lab X1E 3D Printer has an additional 5kg (11lbs) in weight with the Bambu Lab AMS unit attached.
*** The printer can print third-party filaments, however not all spools from third-party filaments are compatible with the Bambu Lab AMS unit. Limitations may be due to outer dimensions of the filament spool or spool material compatibility. UZY filaments are compatible with the Bambu Lab AMS unit.
